ST-X Wide Tall - WOOD, MULTI FUEL & BIO-ETHANOL OPTIONS - 5KW

ST-X Wide Tall - WOOD, MULTI FUEL & BIO-ETHANOL OPTIONS - 5KW

  • £1,049.00
    Unit price per
Tax included. Shipping calculated at checkout.


New Widescreen version of the ST-X. Still rated at 5kW nominal. Slimline depth. Heatsheild fitted to rear to reduce the distance to combustibles.

The mid size model of the new ST-X range - the ST-X Wide is rated at 5kW output, and approx 79% efficiency.

The ST-X Wide has a particularly wide firebox for a 5kW model allowing a greater range of heat output and for larger logs to be burned.

Already EcoDesign compliant to meet 2022 ErP requirements. Minimal emmisions.

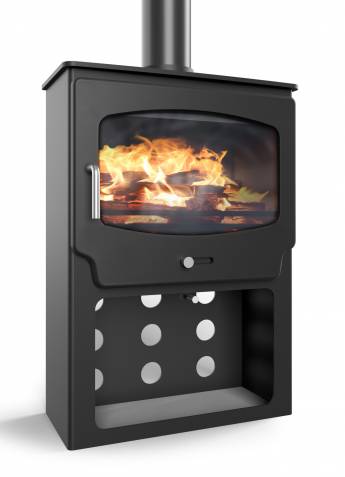

Constructed from a precision-welded thick steel body with cast iron door and thermo-refractory fire brick inner linings.

Many times cleaner than the required standard for "DEFRA" exemption, it can legally be used anywhere in the UK including the strictest of smoke control zones.

Designed with simple, easy to operate user friendly controls.

Designed with a large viewing window for amazing views of the fire. The flame pattern with the advanced "after-burner" system is quite unique.

The ST-X Wide is a multi-fuel stove able to efficiently burn wood logs or smokeless coal - the coal ashes will fall through the grate and into the ash can which easily lifts out when full.

The stove is ready to install, no assembly is required and comes complete with high temperature mitt/glove.

Finished in black high temperature paint which we source from the USA and with thermo-ceramic clear glass from the industry-leading "Schott" brand in Germany.

There is an air-wash system to help keep the glass clearer.

The ST-X Wide has a 5"(125mm) diameter top and rear flue outlet. Can be used with 5" diameter flue liner or twinwall flue.

  • Ecodesign 2022 Ready (future proofed)
  • DEFRA Exempt / Approved for Smoke Control Areas
  • Large viewing window
  • 2-5kW operating range
  • 79% efficiency
  • Ultra-clean burning
  • Low maintenance
  • No delicate complex parts to go wrong
  • Suitable for use on 12mm hearth
  • Generous firebox size

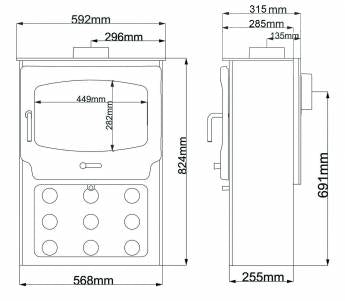

Heat output: 5 kW

Height: 824mm

Width: 592mm

Depth: 285mm

Approx weight: 120 kg

Flue Size: 5" (125mm)


Internal Firebox Width - 455mm
Internal Firebox Depth - 195mm
Max Log Size -  17inch (430mm)
Rear to centre of top flue - 135mm
Floor to centre of rear flue - 691m
